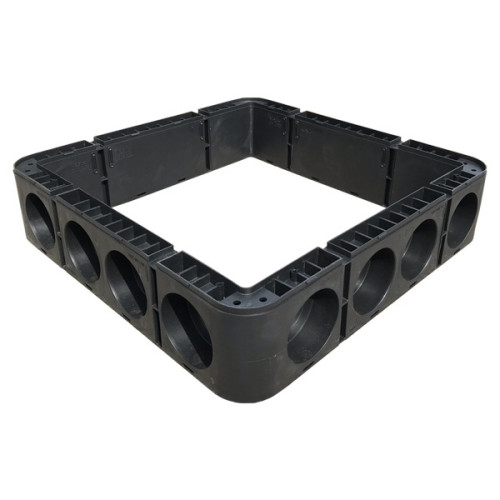

Nexus Structural Chamber 450mm x 450mm - Duct Entry Section
NEXUS™ is a unique patented twin-wall access chamber system which comprises of high-quality polypropylene modules that are assembled into ring sections before delivery. The system offers to raise ring and duct entry ring sections. Each ring includes male and female 'quick-click' connections enabling each to be quickly stacked in an array of arrangements, therefore allowing the positioning of duct entry sections to accommodate varying depths of ducting. For ducts exceeding the standard 64mm and 114mm diameter entry points, the raising ring can be core-drilled on-site to accommodate all sizes of the duct. On larger ducts, it's recommended that raising ring sections are drilled for all duct entries to maintain structural rigidity.
- High-quality modular system
- Structural high strength without concrete surround
- Lightweight but durable Polypropylene (PP) material
- Assembled in 150mm increments
- Vertical load tested to D400 (40 tonnes)
- 64mm & 114mm Diameter preformed duct entry points option
- 100% Recyclable
Features
- Manufacturer: EJ
- Manufacturer Part Number: NX4545DE
- Loading: D 400
- Material: Polypropylene
- Dimensions: 450mm(L) X 450mm(W)
- Type: Structural
- Colour: Black
- Sold in units of: Per Item
| Code | Clear Opening (mm) | O/all Dim (mm) | Raiser Ref | Duct Entry Ref | Bracing | Entry Points |
| B125-450 | 450 x 450 | 550 x 550 | RP | DE | - | 12 |
Other Standard Sizes available
| Clear Opening (mm) | O/all Dim (mm) |
|---|---|
| 300 x 300 | 400 x 400 |
| 450 x 300 | 550 x 400 |
| 450 x 450 | 550 x 550 |
| 600 x 450 | 700 x 550 |
| 600 x 600 | 700 x 700 |
| 750 x 600 | 850 x 700 |
| 750 x 750 | 850 x 850 |
| 900 x 450 | 1000 x 550 |
| 900 x 600 | 1000 x 700 |
| 900 x 750 | 1000 x 850 |
| 900 x 900 | 1000 x 1000 |
| 1000 x 1000 | 1100 x 1100 |
Related Products
Full Range of Duct, Microduct and Bundled Microduct Available
