Introduction
In the world of construction and engineering, compliance with industry standards is paramount. One such critical standard is BSEN61386-1:2008+A1:2019, which governs the specifications for conduit systems used for cable management. Among the various requirements of this standard, the markings on steel tubes play a crucial role. In this blog post, we will explore the importance of these markings and how they ensure compliance, safety, and quality in construction projects.
Understanding BSEN61386-1:2008+A1:2019
BSEN61386-1:2008+A1:2019 is a British Standard that specifies the general requirements for conduit systems used to protect and manage electrical cables in a wide range of applications. This standard covers aspects such as mechanical properties, fire resistance, and environmental considerations. One of the key requirements is the proper marking of steel tubes, which serves multiple essential functions.
What are the required markings?
In order to meet the requirements of BSEN31386-1:2008+A1:2019, each length of steel conduit tube must feature the following:
-
Brand identifier, for example a logo
-
The British Standard number
-
Class grades displayed as four digits, for example ‘5557’
-
Product identifiers, for example ‘Class 4’ and ‘20mm’
Should any length of conduit not have any of the above markings present, it does not comply with the standard.
But why are these markings essential?
Ensuring Traceability
Markings on steel tubes provide critical information about the manufacturer, the material, and the production batch. This traceability is vital for several reasons:
Quality Control: If a defect is discovered, the markings allow for the identification of the specific manufacturer, enabling targeted quality control measures and preventing the issue from recurring.
Regulatory Compliance: Traceability ensures that all materials used in a project meet the regulatory requirements and can be audited if necessary.
Verifying Compliance
The markings on steel tubes often include references to the applicable standards, such as BSEN61386-1:2008+A1:2019. This verification is essential for:
Specification, Inspection and Approval: Specification to set standards are becoming more and more prominent at the design stage of projects . Construction projects undergo various inspections to ensure compliance with safety and quality standards. Clear and accurate markings help inspectors verify that the materials used meet the required specifications.
Avoiding Penalties: Using unmarked or incorrectly marked materials can lead to compliance issues, resulting in project delays, damage to brand reputation, and also potential financial penalties.
Enhancing Safety
Safety is a paramount concern in any construction project. Proper markings contribute to safety in several ways:
Material Identification: Accurate markings help workers quickly identify the type and grade of steel tube, ensuring the correct material is used in the right application. This reduces the risk of structural failures or safety hazards.
Class Grades: Indicating the general performance of the conduit and allowing the user to identify the type of conduit being referred to, as well as providing comparisons between the performance of different brands. These grades are identified with four digits – in the case of Metpro for example, their Class 4 HDG tube sees ‘5557’ marked along each length, advising the customer and end-user that this product meets the highest standards for Compression, Impact, Lowest Operating Temperature, and Highest Operating Temperature.

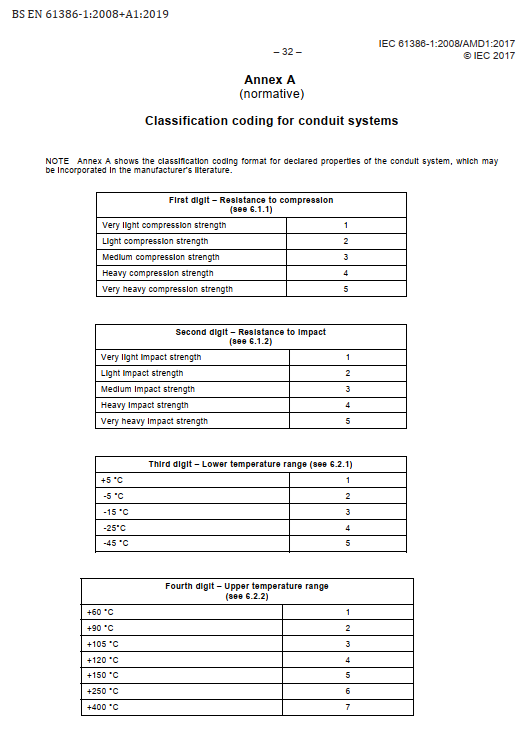

Please see the chart from the standard shown below:
Facilitating Installation and Maintenance
Markings on steel tubes provide essential information that aids in the installation and ongoing maintenance of electrical conduit systems:
Simplified Installation: Installers can easily determine the specifications of the conduit, such as size and material, ensuring correct and efficient installation.
Ease of Maintenance: During maintenance or upgrades, clear markings help technicians identify and work with the existing infrastructure, reducing downtime and improving service efficiency.
Promoting Accountability
Properly marked steel tubes promote accountability among manufacturers and suppliers:
Manufacturer Responsibility: Markings include the manufacturer's identification, holding them accountable for the quality and compliance of their products.
Supply Chain Integrity: Clear markings ensure that all stakeholders in the supply chain, from manufacturers to end-users, maintain the highest standards of quality and compliance.
Conclusion
The importance of markings on steel tubes in compliance with BSEN61386-1:2008+A1:2019 cannot be overstated. These markings ensure traceability, verify compliance, enhance safety, facilitate installation and maintenance, and promote accountability. By adhering to these standards, we can ensure the highest levels of quality and safety in construction and electrical projects.
As we continue to advance in our industry, let us remain committed to upholding these standards and recognising the crucial role that proper markings play in our work. By doing so, we contribute to a safer, more efficient, and more reliable built environment.
